DIYE: industrial radiography systems — X-ray sources, CR, DR and digitizer.
A complete industrial radiography range distributed in Italy by PITECH: high-frequency portable X-ray sources and generators with metal-ceramic tubes, Computed Radiography systems with flexible imaging plates, Digital Radiography flat panels, a laser-array film digitizer with DICOM/DICONDE. DIYE is a vertically integrated Chinese manufacturer that builds its own X-ray tubes in-house, for aerospace, oil & gas, pressure equipment, foundry and pipeline.
An integrated radiography manufacturer, a technical partner in Italy.
Manufacturer: DIYEDIYE — represented and distributed in Italy by PITECH Industrial Solution
DIYE is a vertically integrated radiography manufacturer: it combines R&D, production and in-house X-ray tube manufacturing. The company declares over 90 patents, a facility of about 20,000 m² and ISO 9001, ISO 14001 and ISO 45001 certifications. The range covers the entire radiographic workflow, from the X-ray source to image digitisation (CR, DR and film scanner). PITECH is the technical partner in Italy: application evaluation, solution configuration, start-up support and coordination with the manufacturer.
Integrated manufacturer
R&D, production and X-ray tubes built in-house: direct control over the X-ray source technology chain.
Industrial base
Over 90 declared patents and a facility of about 20,000 m² supporting the complete radiography range.
PITECH technical partner
Application evaluation, system choice, configuration, start-up and support in Italy with coordination toward the manufacturer.
DIYE / Industrial radiography
From the X-ray source to the complete radiographic workflow.
DIYE offers a complete radiography range for non-destructive testing: X-ray sources and generators, CR and DR systems, film digitizer, with accessories and consumables. PITECH supports the system choice based on material, thickness, component geometry and required throughput, with technical-commercial support in Italy. Values are declared by the manufacturer; where a figure is not available it is shown as "to be confirmed at quotation stage".
X-ray sources • High frequency

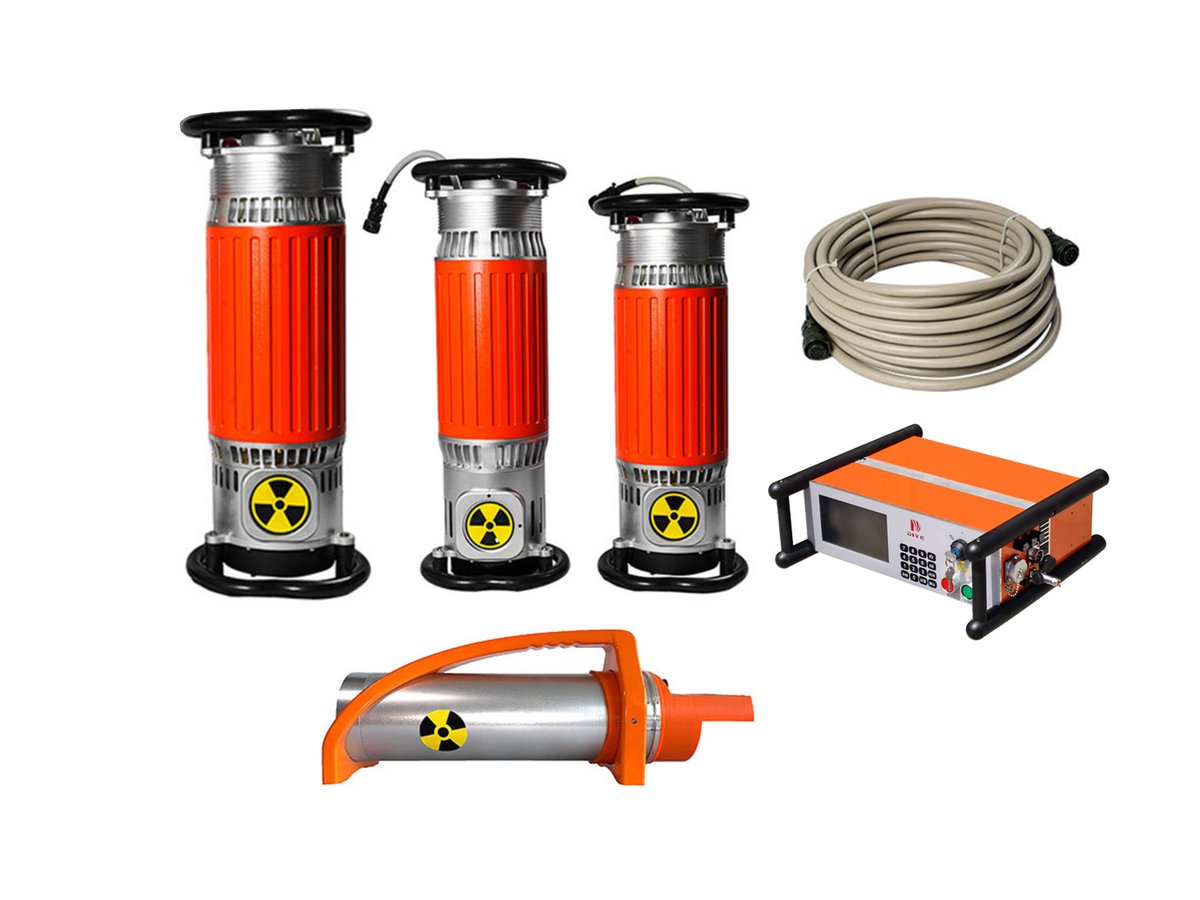

DIYE portable X-ray sources and generators
DIYE high-frequency portable X-ray generators (constant potential, 100 kHz, 100% duty cycle) with metal-ceramic tubes, for radiographic testing in the field, workshop and production. The energy choice (160, 200, 225 or 300 kV) depends on material, thickness, geometry and required sensitivity. The range includes directional ceramic-tube units, rod-anode systems for circumferential welds and pipe crawlers.
Model
Voltage
Current
Power
Focal spot
Steel penetration
Tube type
Weight
Notes
DIYE-160B
40-160 kV
0.1-0.5 mA
500 W
0.8×0.8 mm
30 mm
DIYE metal-ceramic
head 10.3 kg
High frequency 100 kHz, 100% duty, -20/+50°C
DIYE-200GD
200 kV
0.5-3.0 mA
to be confirmed at quotation stage
to be confirmed at quotation stage
to be confirmed at quotation stage
DIYE metal-ceramic
to be confirmed at quotation stage
High frequency, constant potential
DIYE-225GD
225 kV
0.5-3.0 mA
to be confirmed at quotation stage
to be confirmed at quotation stage
to be confirmed at quotation stage
DIYE metal-ceramic
to be confirmed at quotation stage
High frequency, constant potential
DIYE-300GD
100-300 kV
0.5-3.0 mA
900 W
3.0 mm (EN 12543)
65 mm
Imported metal-ceramic
head 29 kg
High frequency, 100% duty
XXG-3005
150-300 kV
5 mA
to be confirmed at quotation stage
2.5×2.5 mm
50 mm
Directional ceramic
generator 33 kg
Directional ceramic-tube unit
DY-130BG
130 kV
to be confirmed at quotation stage
to be confirmed at quotation stage
to be confirmed at quotation stage
to be confirmed at quotation stage
Rod anode
to be confirmed at quotation stage
Circumferential welds, small-diameter pipes
DY-150BG
150 kV
to be confirmed at quotation stage
to be confirmed at quotation stage
to be confirmed at quotation stage
to be confirmed at quotation stage
Rod anode
to be confirmed at quotation stage
Circumferential welds, small-diameter pipes
Pipe crawler
to be confirmed at quotation stage
to be confirmed at quotation stage
to be confirmed at quotation stage
to be confirmed at quotation stage
to be confirmed at quotation stage
to be confirmed at quotation stage
to be confirmed at quotation stage
High-frequency and power-frequency versions

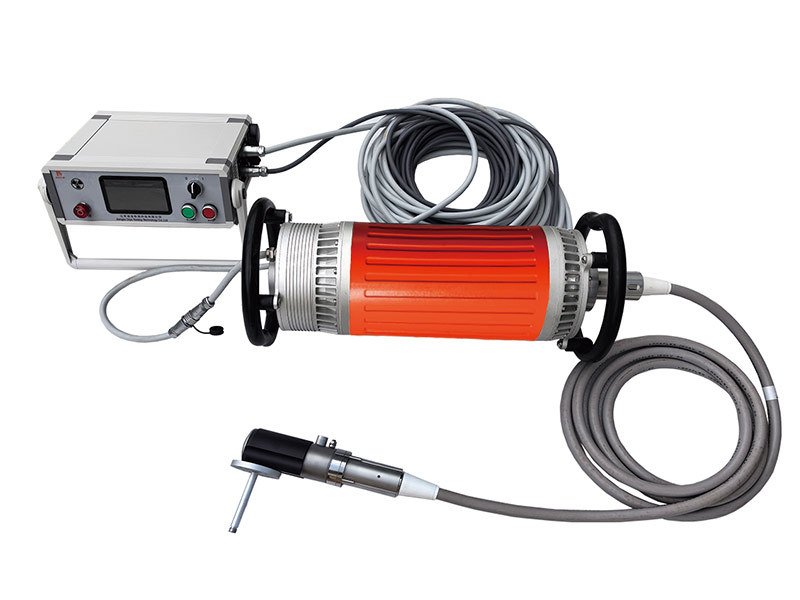

300 kV generator with metal-ceramic tubeRod anode and pipe crawler
Computed Radiography • Imaging plates

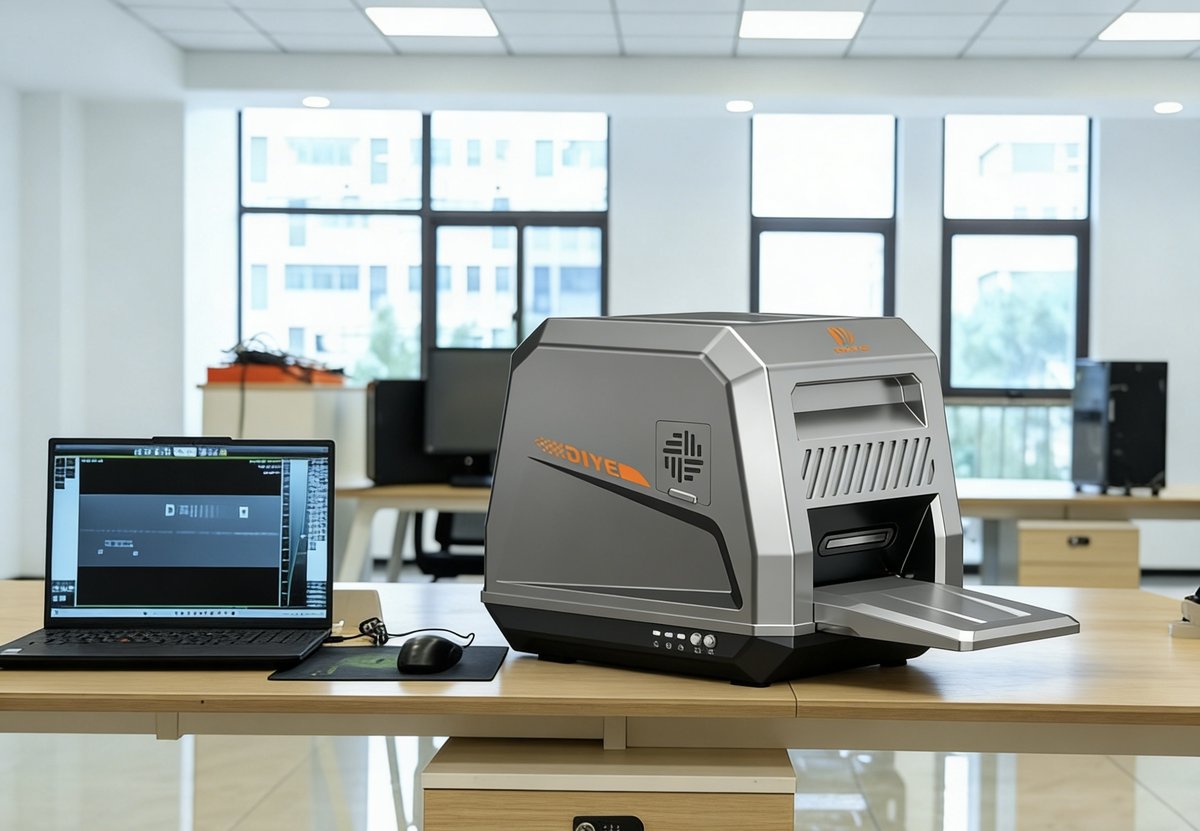

DIYE Computed Radiography (CR) and imaging plates
DIYE Computed Radiography systems digitise the radiographic workflow with flexible imaging plates fed on a motorised tray (tray-fed), not rigid cassettes. Two models cover field and laboratory needs, with selectable scanning and automatic plate handling. DIYE imaging plates come in High-Definition, Fast and Blue-Light versions, in various sizes with free cropping, reusable and compatible with X-ray, gamma and linear accelerators.
Feature
CR Portable 170
CR Plus 430
Weight
24 kg
53 kg
Plate feeding
Motorised tray (tray-fed)
Motorised tray (tray-fed)
Scan resolution
25 / 50 / 100 µm
to be confirmed at quotation stage
PMT (levels)
10 levels
to be confirmed at quotation stage
Laser (levels)
3 levels
to be confirmed at quotation stage
Plate capacity
2 plates of 80 mm or 6.7" wide
4 plates of 80 mm or full 14×17" plate
Max plate length
≤3000 mm
to be confirmed at quotation stage
Plate type
Flexible tray-fed imaging plates
Flexible tray-fed imaging plates
Plate reuse
≥1,200 cycles (≥5,000 in laboratory)
≥1,200 cycles (≥5,000 in laboratory)
Source compatibility
X-ray, gamma, linear accelerators (LINAC)
X-ray, gamma, linear accelerators (LINAC)
Declared compliance
NB/T 47013.14-2023; GB/T 21356-2008
NB/T 47013.14-2023; GB/T 21356-2008

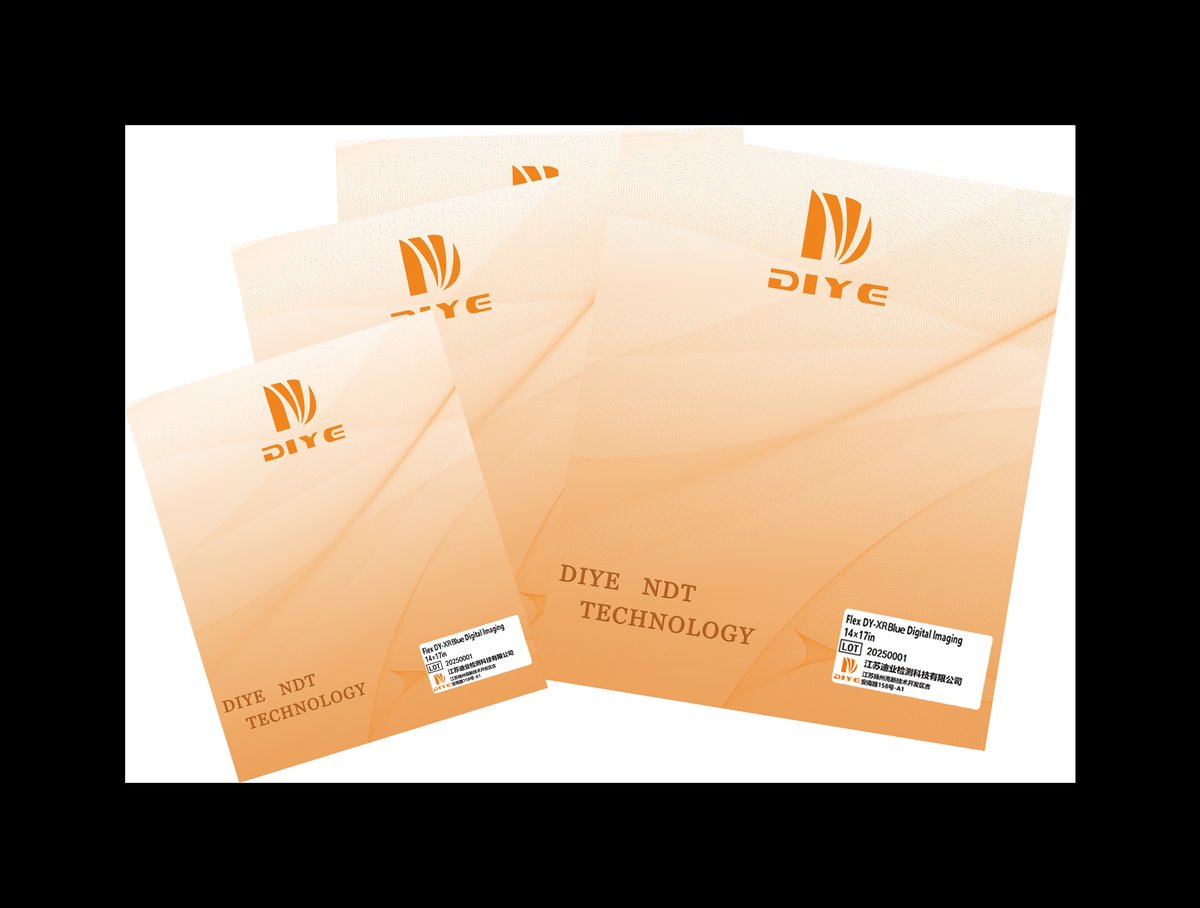

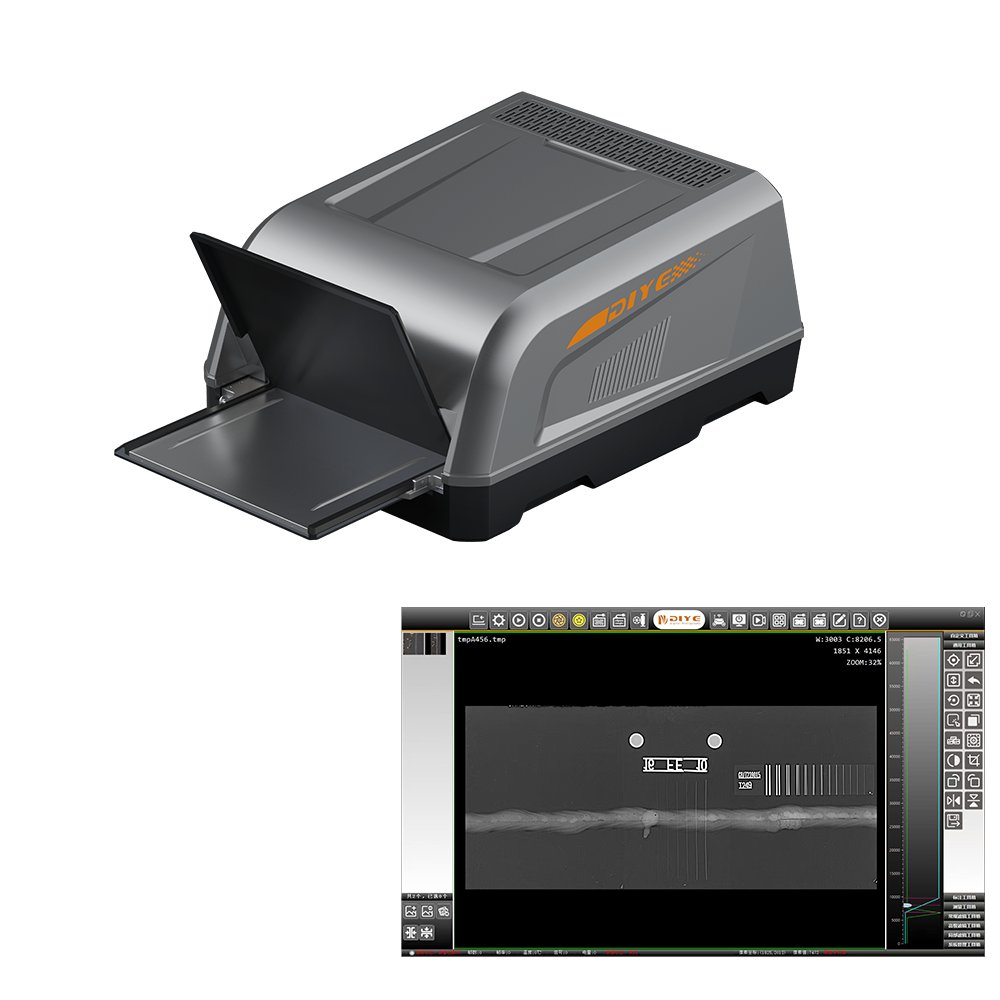

CR Plus 430 for imaging plates up to 14×17"Reusable flexible imaging plates
A single integrated software (DR + CR + film scanner): duplex wire, SNR, CNR and wall-thickness measurements, lead-character recognition and defect evaluation, with declared compliance NB/T 47013.14-2023 and GB/T 21356-2008.
Digital Radiography • Flat panel
DIYE Digital Radiography (DR) and flat panels
DIYE flat panels provide direct digital acquisition for industrial Digital Radiography, with an amorphous-silicon plus scintillator architecture, 16-bit digitisation and IP67 protection. The dual dynamic/static mode and wired or wireless connection support cabin and field inspection. The flexible, bendable detectors extend DR to curved surfaces such as pipes and complex-geometry components.
Model
Type
Technology
Bit depth
Protection
Mode
Connection
Application
DIYE 3NDT
Flat panel
Amorphous silicon (a-Si) + scintillator
16 bit
IP67
Dynamic / static
Wired and wireless
Flat surfaces, DR inspection
DIYE 4NDT
Flat panel
Amorphous silicon (a-Si) + scintillator
16 bit
IP67
Dynamic / static
Wired and wireless
Flat surfaces, DR inspection
DIYE-1025NDT
Flexible/bendable detector
to be confirmed at quotation stage
to be confirmed at quotation stage
to be confirmed at quotation stage
to be confirmed at quotation stage
to be confirmed at quotation stage
Curved surfaces
DIYE-1043NDT
Flexible/bendable detector
to be confirmed at quotation stage
to be confirmed at quotation stage
to be confirmed at quotation stage
to be confirmed at quotation stage
to be confirmed at quotation stage
Curved surfaces

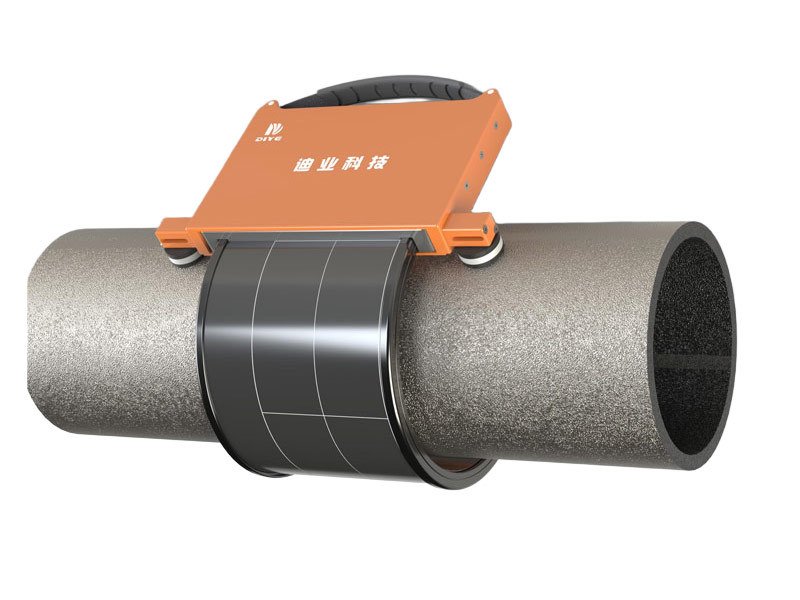

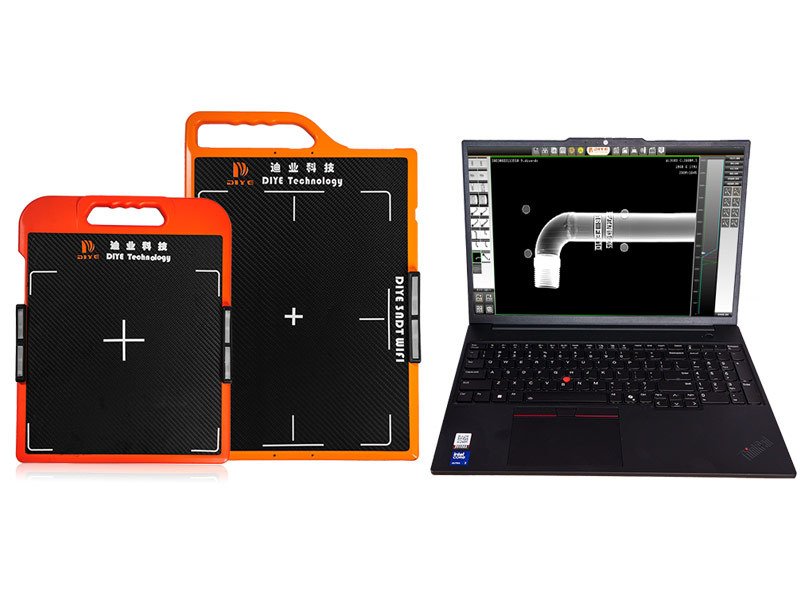

DR flat panel IP67 dynamic/staticFlexible detector for curved surfaces
Film digitizer • Laser array

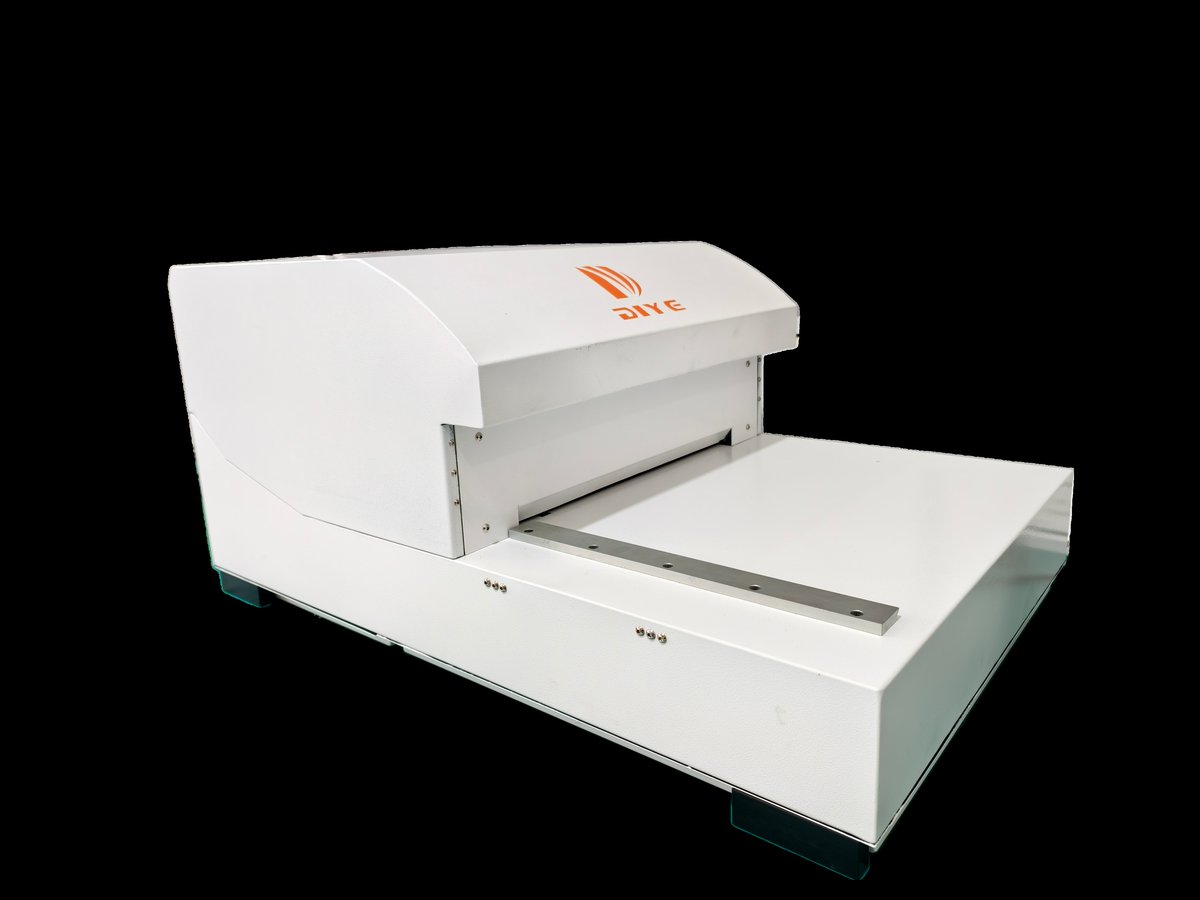

DIYE-910II film digitizer
The DIYE-910II Industrial Array Laser Film Digitizer digitises industrial radiographic films with high optical density and high bit depth, for digital archiving, reporting and integration into DICOM/DICONDE systems. Suitable for converting existing film archives into digital images that can be analysed with the radiographic software.
Feature
DIYE-910II
Technology
Industrial laser-array film digitizer
Optical density
Up to D=4.7 (range 0-4.70)
Bit depth
16 bit / 65,536 grey levels
Resolution
25-200 µm
Scan time
A 14×17" in about 20-30 s
Film length
Many sizes, up to 5000 mm long
Interface
RJ45
Operating system
Windows 10
Weight
56 kg
Power
60 W
Supported standards
DICOM and DICONDE; ISO/GB compliant
Radiographic accessories
Accessories and consumables for the radiographic workflow.
Beyond sources and imaging systems, DIYE supplies accessories and consumables to complete the industrial radiography workflow, from the darkroom to reading and radiation safety.
Film and processing
Industrial radiographic film, film processors and film drying cabinets for managing the film process.
Image reading
Film viewers and illuminators for reading radiographs under controlled conditions.
Visualisation
Monitors for reporting and digital image analysis stations in the CR/DR workflow.
Radiation safety
Dosimeters and radiation monitors to support radiological safety management.
Image quality
IQIs and penetrameters for verifying radiographic sensitivity according to procedure.
Identification
Lead characters and markers for image identification, also recognised by the DIYE software.
AerospaceOil & GasPressure equipmentFoundry and die castingWeldsPipes and pipelinePower generationShipbuildingProduction quality controlNDT service
FAQ
Frequently asked questions on DIYE radiography systems
Does the DIYE CR system use rigid cassettes?
No. DIYE Computed Radiography systems (CR Portable 170 and CR Plus 430) work with flexible imaging plates fed on a motorised tray (tray-fed), not rigid cassettes. The imaging plates are reusable for at least 1,200 cycles and are compatible with X-ray, gamma and linear accelerators.
What power and focal spot does the DIYE-300GD 300 kV generator have?
The DIYE-300GD operates from 100 to 300 kV with 0.5-3.0 mA current and 900 W power. The declared focal spot is 3.0 mm per EN 12543, with up to 65 mm steel penetration and a head of about 29 kg. It uses an imported metal-ceramic tube.
Does the DIYE film digitizer support DICONDE?
Yes. The DIYE-910II Industrial Array Laser Film Digitizer supports DICOM and DICONDE formats, with optical density up to D=4.7, 16-bit digitisation (65,536 levels) and selectable resolution from 25 to 200 micron.
What resolution do DIYE CR systems have?
DIYE CR systems offer selectable scanning at 25, 50 or 100 micron. The CR Portable 170 handles up to 2 imaging plates of 80 mm (or 6.7 inches wide) with lengths up to 3000 mm; the CR Plus 430 handles up to 4 imaging plates of 80 mm or a full 14×17-inch plate.
Does DIYE build its own X-ray tubes?
Yes. DIYE is a vertically integrated manufacturer with an in-house department for X-ray tube manufacturing. Some models use metal-ceramic tubes built in-house; the DIYE-300GD generator uses an imported metal-ceramic tube. PITECH helps verify the most suitable configuration for the application.
Application support
Technical support, installation and training.
Beyond the choice of DIYE system and configuration, PITECH supports the customer in defining the radiographic application project and coordinating the following steps with the manufacturer.
Solution configuration
Choice between X-ray source, CR, DR, film digitizer, energy/kV, imaging and accessories based on the radiographic application.
Start-up and installation
Coordination of commissioning, initial trials and integration into the radiographic control and quality workflow.
Operator training and radiation safety
Usage training, X-ray source safety best practices and connection with DIYE for service and spare parts.
Contact
Request an evaluation or a quote for a DIYE radiography system.
If you need to buy or evaluate an industrial radiography system — X-ray source, CR, DR or film digitizer — PITECH Industrial Solution, DIYE distributor in Italy, can help clarify the requirement, choose the most suitable solution and turn the choice into an industrial project.
Application request
Tell us about the radiographic application to evaluate.
Send a request with the component, material and thickness, defect type, workflow (film, CR, DR) and operating environment.
